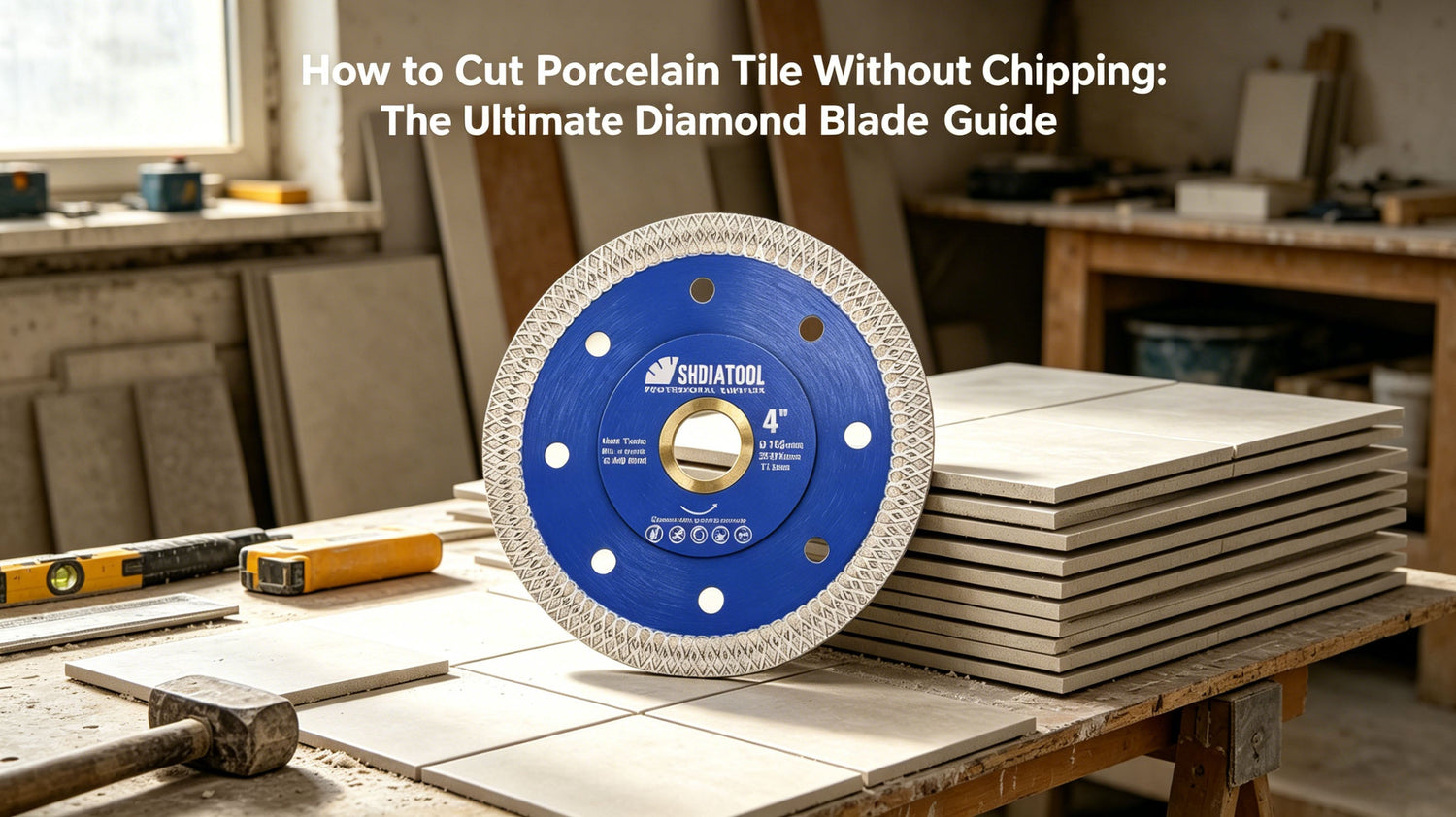

How to Cut Porcelain Tile Without Chipping: The Ultimate Diamond Blade Guide

If you’ve ever tackled a high-end tiling project, you know the frustration. You measure twice, mark a perfect line on an expensive piece of porcelain, fire up your angle grinder, and make the cut—only to end up with a jagged, badly chipped edge. One wrong move and a $50 tile goes straight into the trash.

Porcelain is incredibly dense and brittle. Standard, thick diamond blades generate intense friction and heat, causing micro-fractures along the glaze.

So, how do professional tile setters get those razor-sharp, factory-smooth edges every single time? It comes down to two things: proper technique and blade engineering.

Here is a practical troubleshooting guide to solving the most common tile-cutting headaches, and why the right blade design makes all the difference.

1. Why Do My Porcelain Tiles Keep Chipping?

Standard diamond blades rely on aggressive abrasion. When a thick blade hits dense porcelain, it slams into the material, violently punching away at the baked glaze.

To prevent chipping, you need to minimize resistance. The SHDIATOOL Mesh Turbo Blade features an ultra-thin 1.2mm segment profile. Because the kerf (cut width) is so narrow, the blade removes less material, reducing friction instantly. Combined with a premium #60/80 industrial diamond grit, it slices rather than chops, leaving a clean, factory-grade edge on porcelain, ceramic, and delicate marble.

Pro Tip: Never force the blade. Let the weight of the angle grinder do the work. Forcing a dull or thick blade is the #1 cause of catastrophic edge blowouts.

2. What is an "X-Mesh" Rim, and Do I Really Need It?

Look closely at the rim of a professional porcelain blade, and you’ll see an intricate X-shaped mesh pattern instead of a flat, smooth ring. This isn't for aesthetics—it solves two major field issues:

• Thermal Management: The continuous mesh pattern acts like mini turbine blades, channeling ambient air (or water) directly to the cutting zone. This keeps the steel core cool and prevents the diamonds from glazing over.
• Flawless Debris Clearing: Dense porcelain produces micro-fine dust that can bind your blade. The X-mesh grooves continuously sling out slurry and dust, preventing the blade from binding or kicking back mid-cut.

3. Dry Cutting vs. Wet Cutting: Which Is Best?

Can you run this blade dry? Yes. Is wet better? It depends on your job site setup.

• When to Cut Dry: Perfect for quick, on-site notch cuts or vent cutouts where setting up a bulky wet saw isn’t practical. Thanks to its hot-pressed sintered bond, the SHDIATOOL blade handles dry cutting beautifully without warping.
• When to Cut Wet: For long, continuous straight cuts, always use water. Wet cutting lubricates the diamond matrix, keeps dust down by 99%, and easily doubles or triples the lifespan of the blade.

4. How to Fix "Blade Walking" and Wobbly Cuts

Have you ever noticed your blade curving slightly during a long cut? This is called "blade walking." Budget thin blades often flex and vibrate under high RPMs, leading to crooked cuts and cracked tiles.

To stop this, we engineered this blade with a reinforced stiffening flange core on both sides of the center hub. This double-armored center keeps the blade perfectly rigid and vertical at maximum speeds (up to 12,000 RPM for the 4.5" model), eliminating precision-destroying vibrations.

5. Fitment & Arbor Setup: Will It Fit My Tool?

Nothing is more annoying than ordering a blade that doesn't fit your tool arbor. We designed this wheel to be universally compatible with standard North American and European gear:

• 7/8" (22.23mm) Standard Bore: Fits right out of the box onto most standard 4" and 4.5" angle grinders (including Dewalt, Makita, Milwaukee, and Bosch).
• Precision Reducer Washers Included: Every package comes with a high-tolerance brass reducer washer (22.23mm to 20mm, or 5/8" depending on the blade size). If you're mounting it to a specific circular saw or tile saw, keep the washer in. Using a standard grinder? Just pop the washer out.

6. Can It Handle Materials Other Than Porcelain?

While optimized for the vitreous hardness of porcelain, the industrial-grade diamond matrix is versatile enough to cut through a wide range of masonry materials:

• Glazed Ceramic & Quarry Tiles
• Granite & Quartz Countertop Remnants
• Natural Marble Subways
• Slate, Sandstone, & Hard Brick

The Bottom Line: Stop Wasting Expensive Tile

You don’t need an expensive, bulky wet tile saw setup to get professional, chip-free results. By swapping your generic abrasive wheels for a purpose-built, Hot-Pressed Sintered Mesh Turbo Blade, you save time, eliminate waste, and deliver cleaner lines for your clients.
