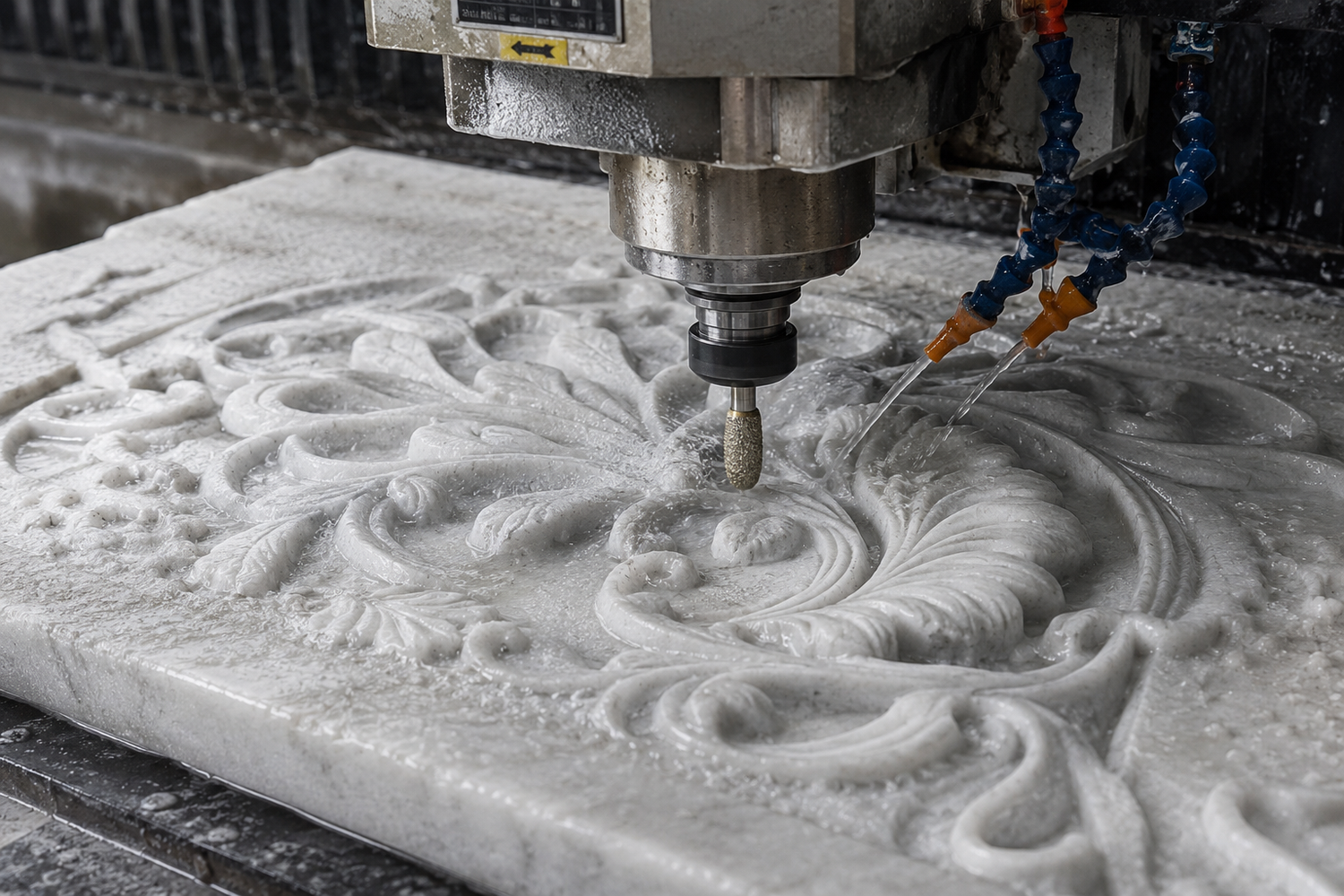

Mastering Stone Carving: How to Choose and Operate CNC Vacuum Brazed Diamond Router Bits

Anyone who works with stone fabrication or CNC engraving knows one thing: hard materials do not forgive mistakes.

Marble, granite, quartz, sandstone, and engineered stone can quickly destroy ordinary cutting tools. A bit that works perfectly on wood or softer materials may lose its edge after only a short time on stone. The result is familiar—rough edges, vibration marks, broken tips, wasted material, and downtime.

For detailed 3D carving, clean lettering, slots, or decorative stone work, tooling quality matters more than many operators realize. The right diamond router bit not only improves cutting performance but also affects surface finish, machining efficiency, and overall tool life.

This guide walks through how to select the proper CNC diamond engraving bit and explains where different SHDIATOOL vacuum brazed diamond router profiles perform best in real-world applications.

Why Vacuum Brazed Diamond Tools Have Become Popular

Before choosing a bit profile, it helps to understand what makes one diamond tool different from another.

Stone tools generally fall into three categories:

• Electroplated diamond
• Sintered diamond
• Vacuum brazed diamond

Each has its place, but for engraving and precision milling, vacuum brazing often offers the best balance between cutting speed and durability.

Unlike electroplated tools that only hold a thin layer of diamond particles on the surface, vacuum brazing bonds diamonds to the steel body under extremely high temperatures. The process creates a stronger connection between the abrasive particles and the tool itself.

In actual production environments, this usually translates into several practical advantages:

Sharper cutting action

The diamond particles remain highly exposed, allowing the bit to cut aggressively instead of rubbing against the material. Less rubbing means less heat and cleaner results.

Better stability during heavy machining

A reinforced steel body reduces vibration and minimizes tool deflection, especially during long engraving operations.

Works across multiple materials

One bit can often handle marble, granite, quartz, ceramic tile, artificial stone, and similar hard materials without frequent tool changes.

For shops running mixed materials every day, versatility alone can save a considerable amount of setup time.

Choosing the Right Bit Shape Matters More Than Diameter

Many operators focus only on diameter, but geometry often has a larger impact on the final result.

Different profiles produce very different cutting behavior.

Taper Ball Nose (Tapered Body with Ball End)

Typical sizes:

D6-3-12mm
D6-3-20mm
D8-3-20mm
D10-4-30mm

Best suited for:

• Detailed 3D relief carving
• Statues
• Texture work
• Deep curved engraving

The tapered body provides extra rigidity while keeping a fine cutting tip.

This design becomes especially useful during detailed work where small straight bits tend to flex or snap. The ball end reaches into narrow areas and leaves smoother transitions on curved surfaces.

For intricate carving, this profile is usually the first choice.

Ball Nose Router Bit

Typical sizes:

D8-12mm
D8-30mm
D10-20mm

Best suited for:

• Contoured milling
• Rounded slots
• 3D roughing
• Surface blending

Ball nose tools leave softer transitions and smooth curved channels naturally.

When machining larger 3D structures, many shops rough with larger ball nose tools before switching to smaller finishing bits.

Flat Nose End Mill

Typical sizes:

D6-12mm
D8-20mm
D10-30mm

Best suited for:

• Pocket milling
• Flat-bottom grooves
• Surface cleaning
• Engraved lettering

Whenever the design requires clean vertical walls or perfectly flat surfaces, flat end mills usually produce better results.

They are especially useful for text carving and geometric features where accuracy matters.

Bowl Cut / V-Groove Profile

Typical sizes:

D6-10-6mm
D8-10-10mm
D8-20-12mm

Best suited for:

• V-grooving
• Decorative edge work
• Sign making
• Architectural stone details

These profiles create sharp lines and defined shapes that standard end mills cannot achieve.

For bold lettering and decorative stone projects, they can dramatically improve visual impact.

Machine Settings Matter as Much as the Tool

Even premium tooling can fail early if machine settings are wrong.

A damaged diamond bit is often blamed on quality when the real issue is feed rate, heat buildup, or vibration.

Start Conservatively with RPM and Feed Rates

There is no universal setting because every machine and material behaves differently.

As a starting point:

Spindle speed: roughly 8,000–15,000 RPM

Feed rate: approximately 400–1200 mm/min

Harder materials such as granite usually require slower feed speeds than marble or sandstone.

Pushing aggressively rarely saves time. Excessive feed rates often create heat and vibration, which shorten tool life.

Cooling Makes a Bigger Difference Than Most People Expect

Heat is the enemy of diamond tooling.

Vacuum brazed bits can tolerate high temperatures, but continuous cooling dramatically improves performance.

Water helps:

• Remove stone slurry
• Reduce heat buildup
• Keep diamond particles exposed
• Prevent glazing
• Extend overall tool life

For granite or quartz, wet cutting is strongly recommended.

If dry machining is unavoidable, use air cooling and allow short pauses during long operations.

Avoid Deep Cuts in a Single Pass

Trying to remove too much material at once creates unnecessary stress.

For harder stone:

Recommended pass depth: 0.5–2 mm per pass

Shallower cuts may seem slower initially, but they reduce vibration and prevent damage to both the shank and diamond layer.

Over multiple jobs, this usually saves time and tooling costs.

Check Tool Holding Before Every Job

This step is often overlooked.

Even minor runout can destroy a good bit surprisingly fast.

Insert the bit fully into the collet and verify that everything is clean and secure before machining begins.

Small vibration issues become major problems during long engraving cycles.

Final Thoughts

Stone engraving is demanding work. Success depends on more than simply buying expensive tooling.

The right router profile, proper machine parameters, cooling methods, and setup habits all work together.

A well-matched vacuum brazed diamond bit can produce cleaner carvings, smoother lettering, and longer service life while reducing wasted material and machine downtime.

For fabricators handling daily stone production, those small improvements quickly add up.
