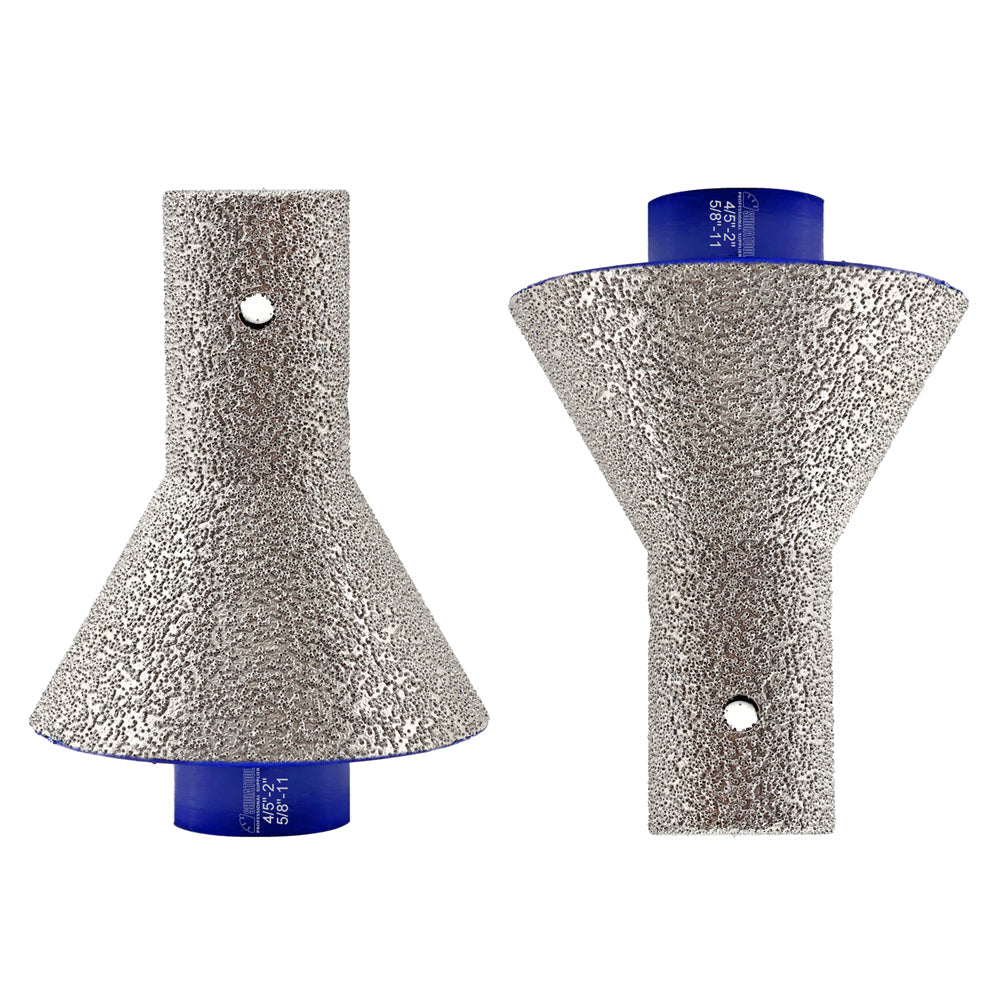

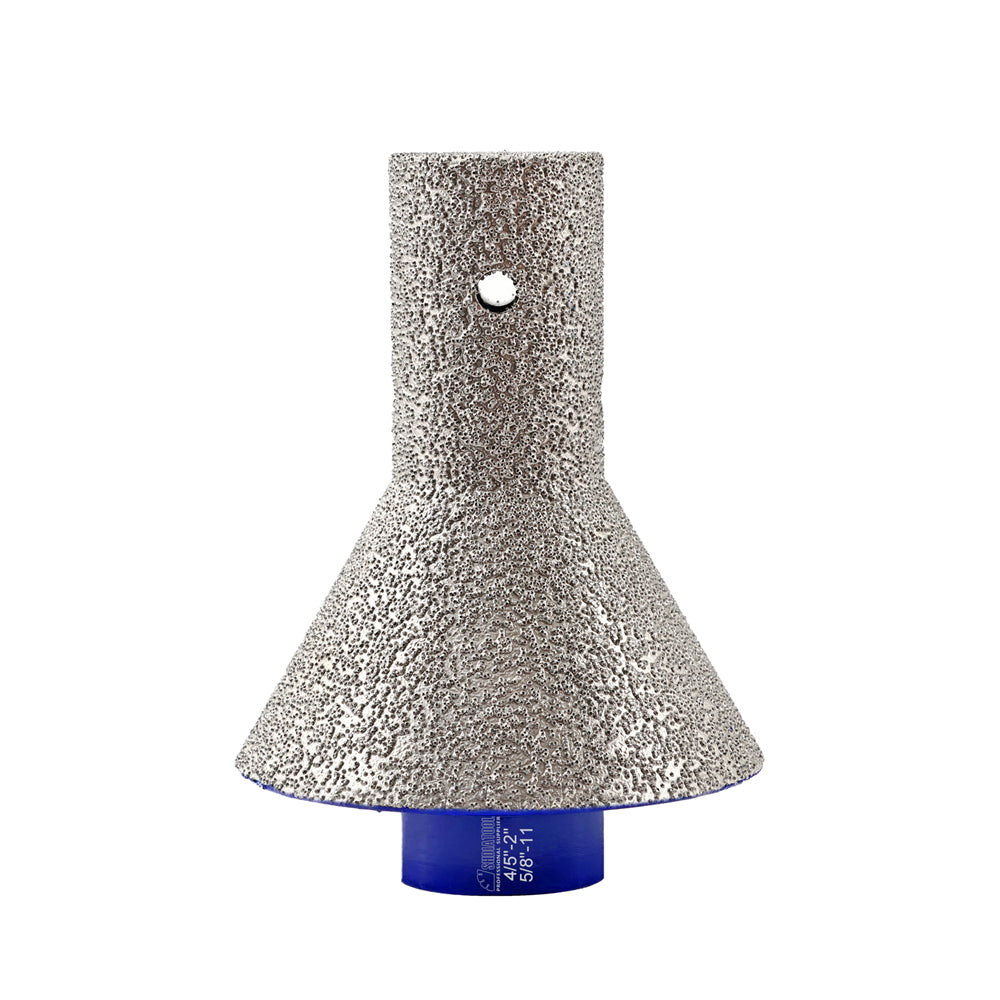

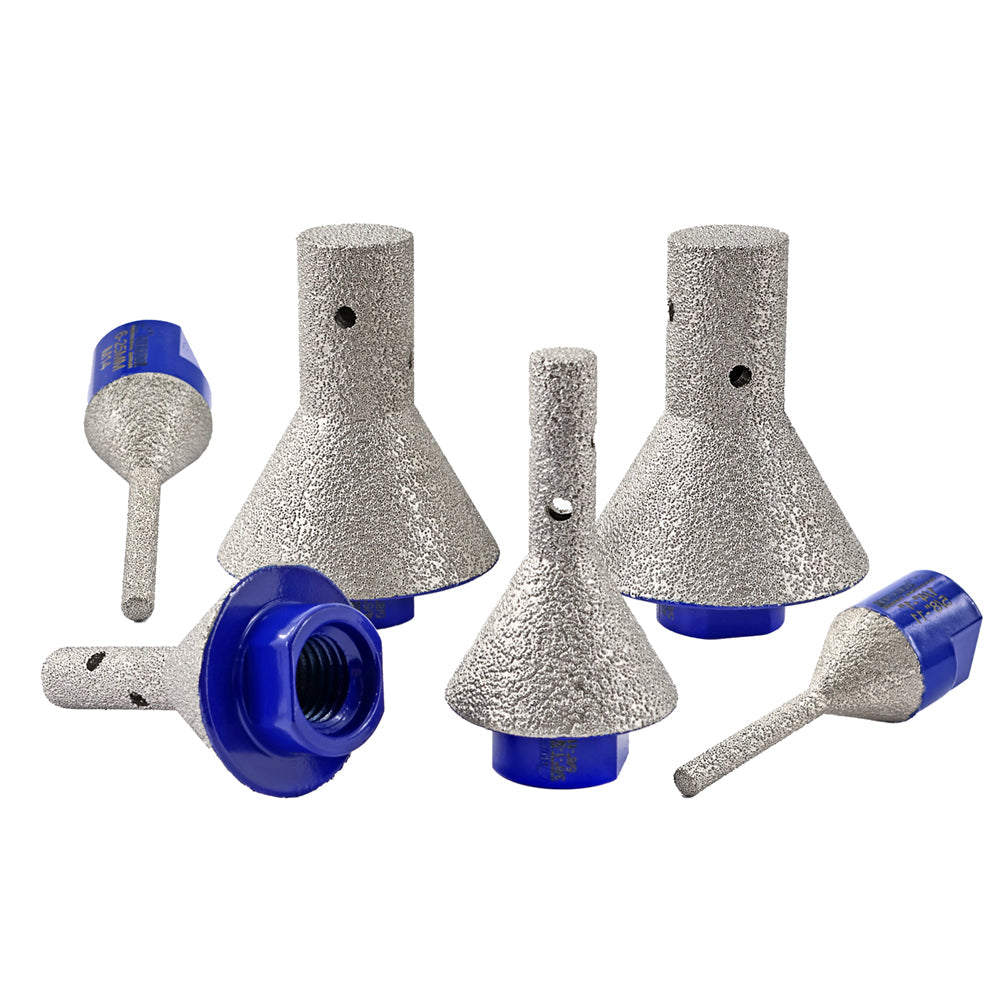

DETAILS Item: SHDIATOOL Vacuum Brazed Diamond Chamfering Finger Bit for Porcelain Ceramic Tile Marble
Quantity: 1pc,2pcs

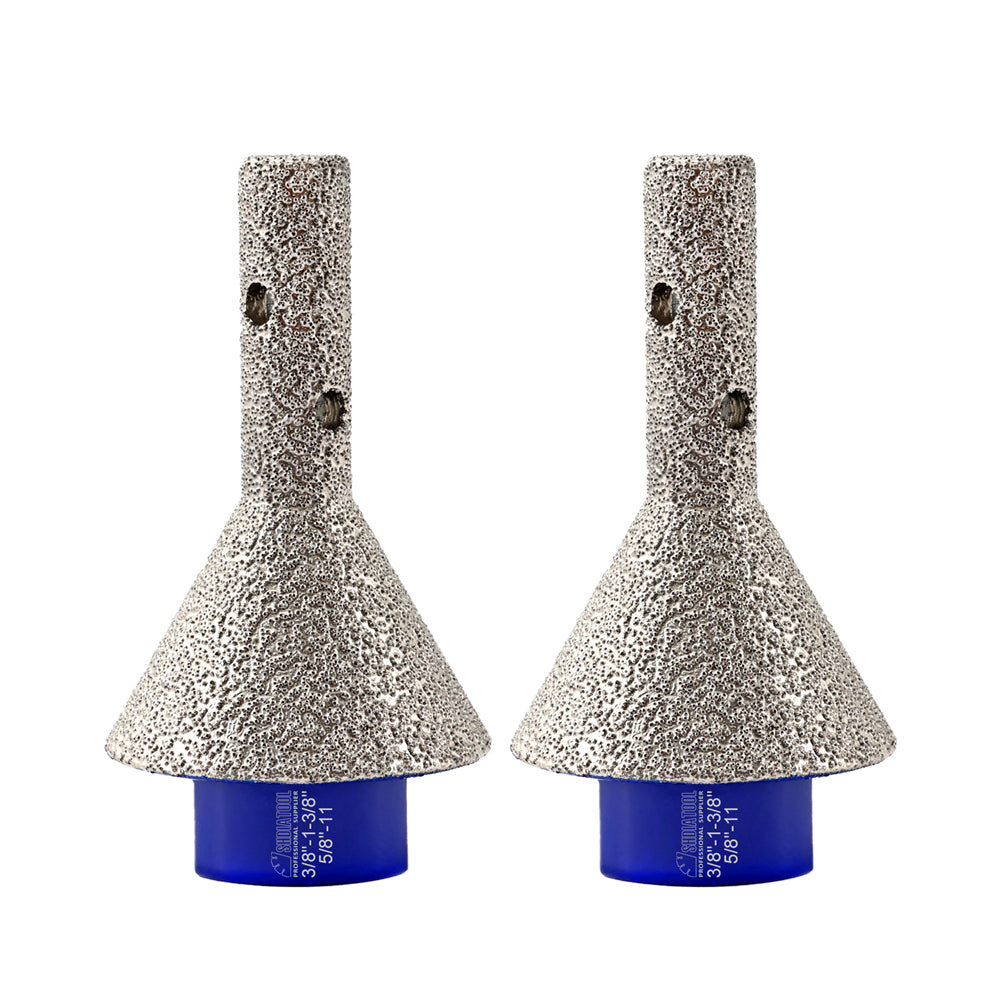

Connection: M14 or 5/8"-11 Thread

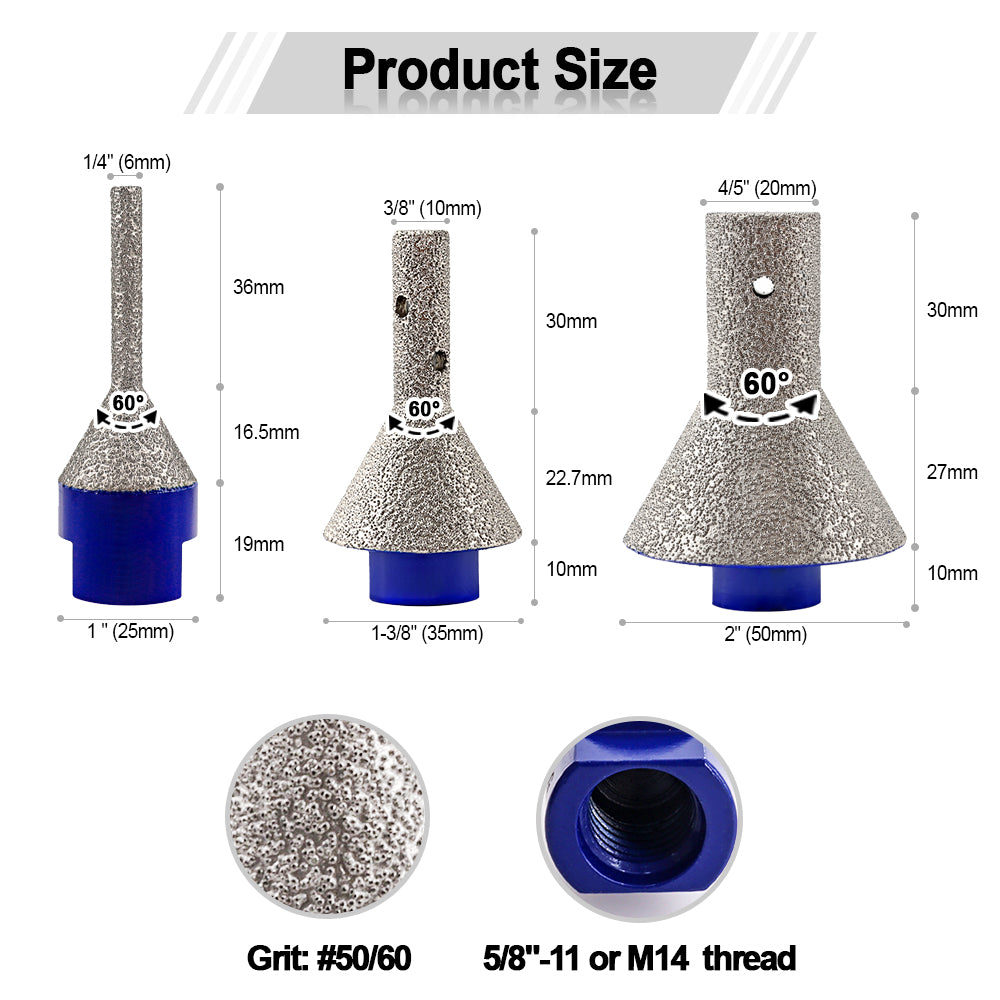

Specification:

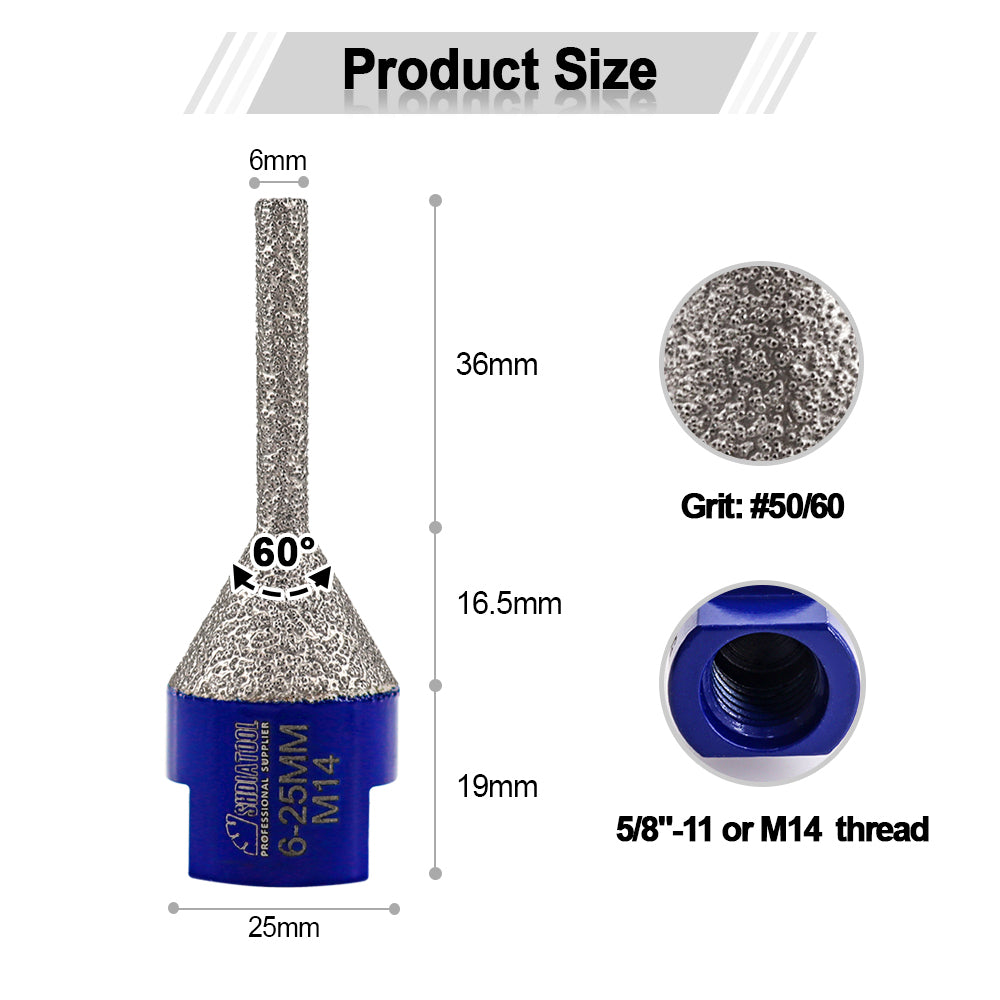

Diameter 6-25mm; Work length 52.5MM; Total Length 71.5MM;Grit #50/60

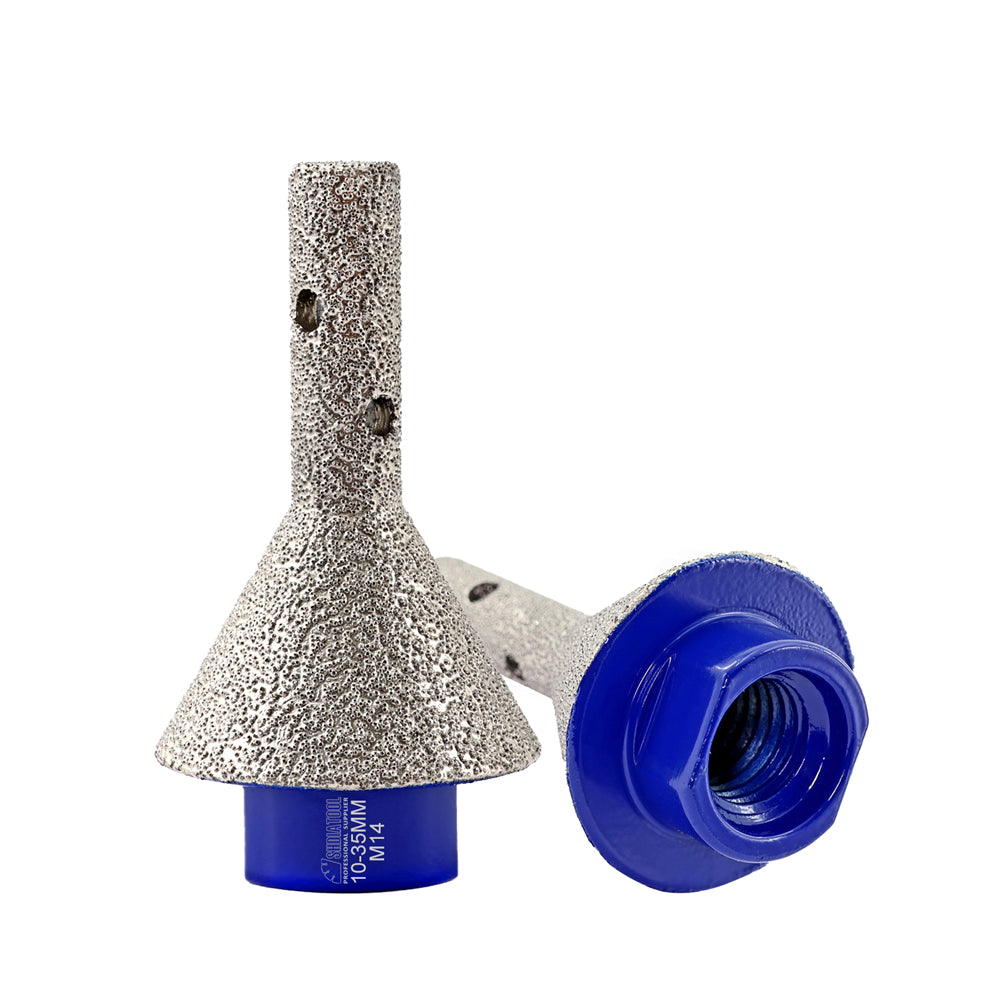

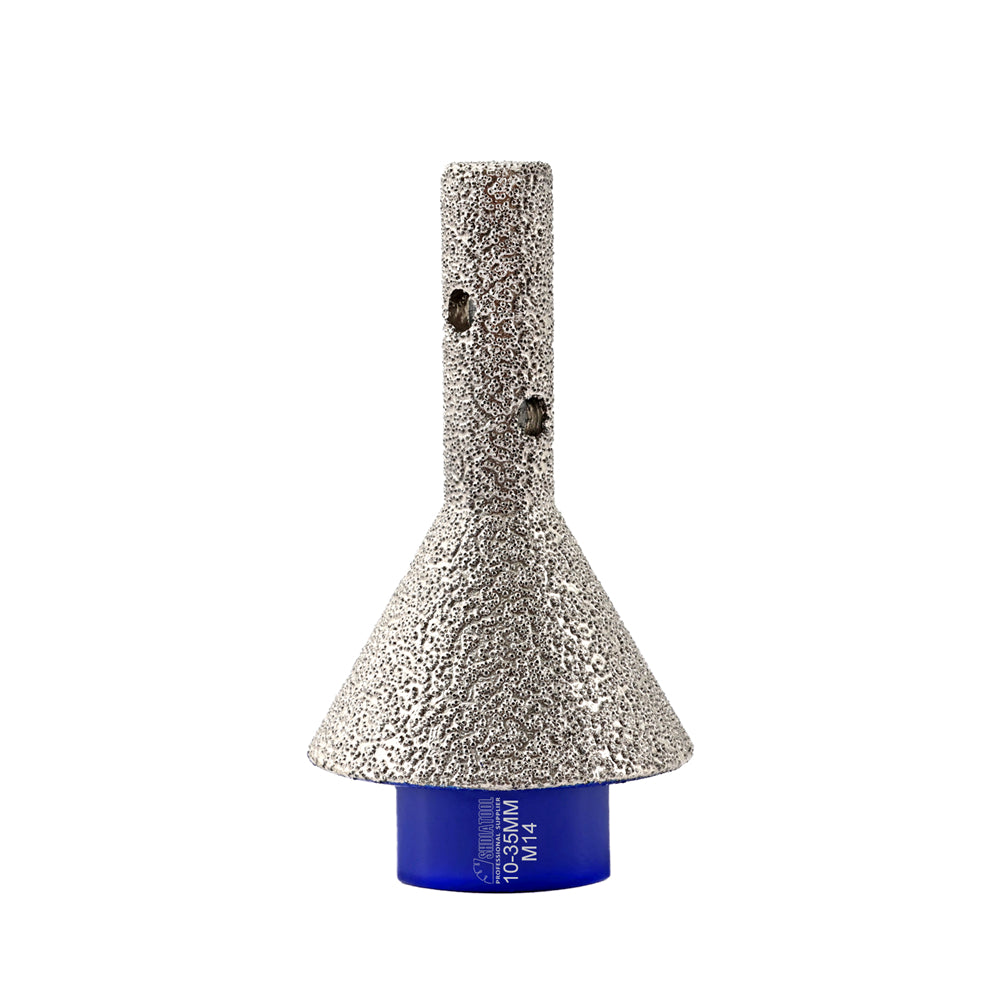

Diameter 10-35mm; Work length 52.7MM; Total Length 62.7MM; Grit #50/60;

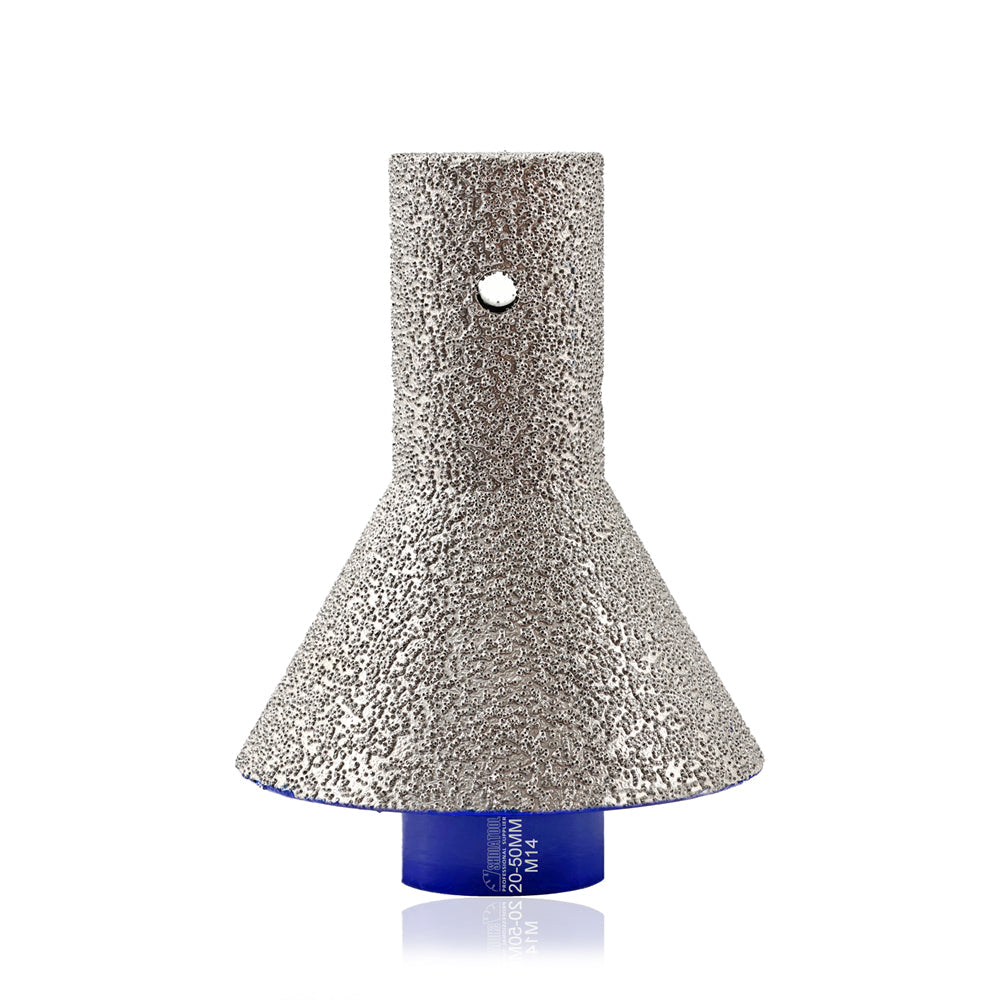

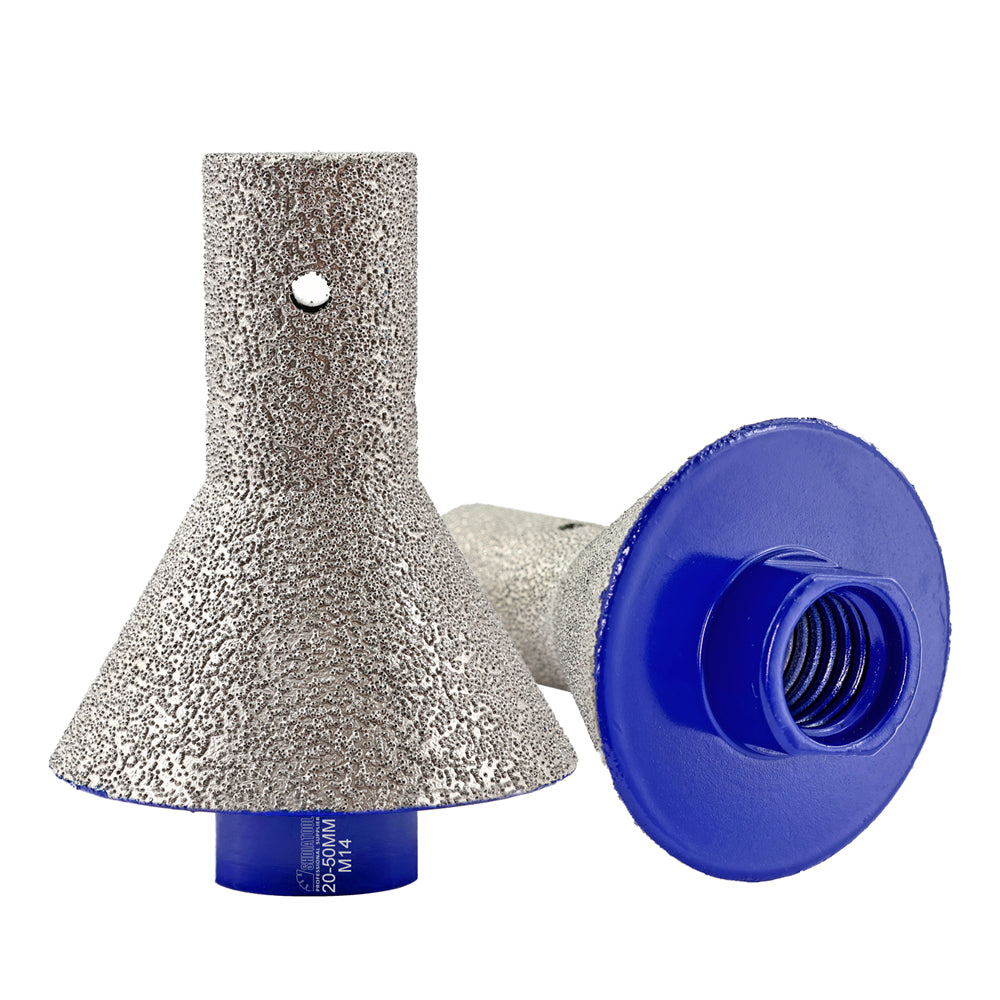

Diameter 20-50mm; Work length 57MM; Total Length 67MM; Grit #50/60;

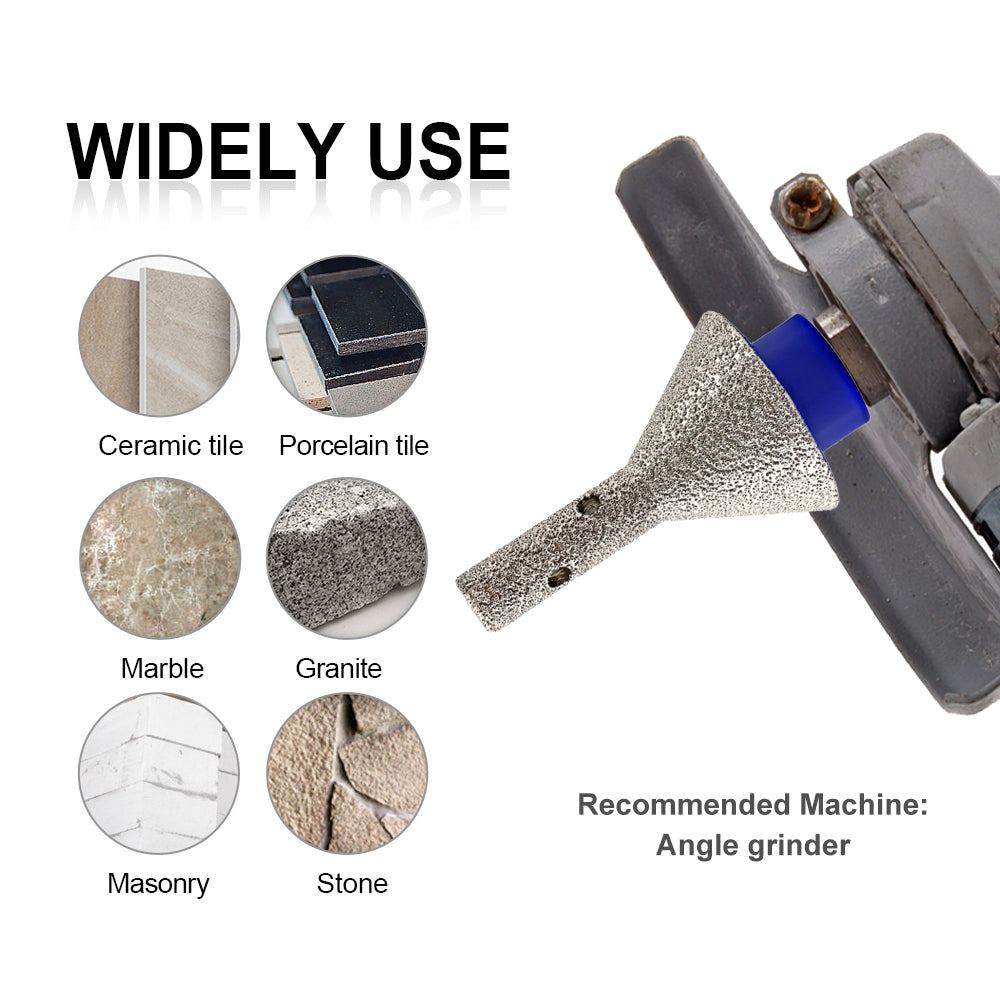

Application:
1. For rocessing ceramic tiles, porcelain tiles, marble, granite and other materials;

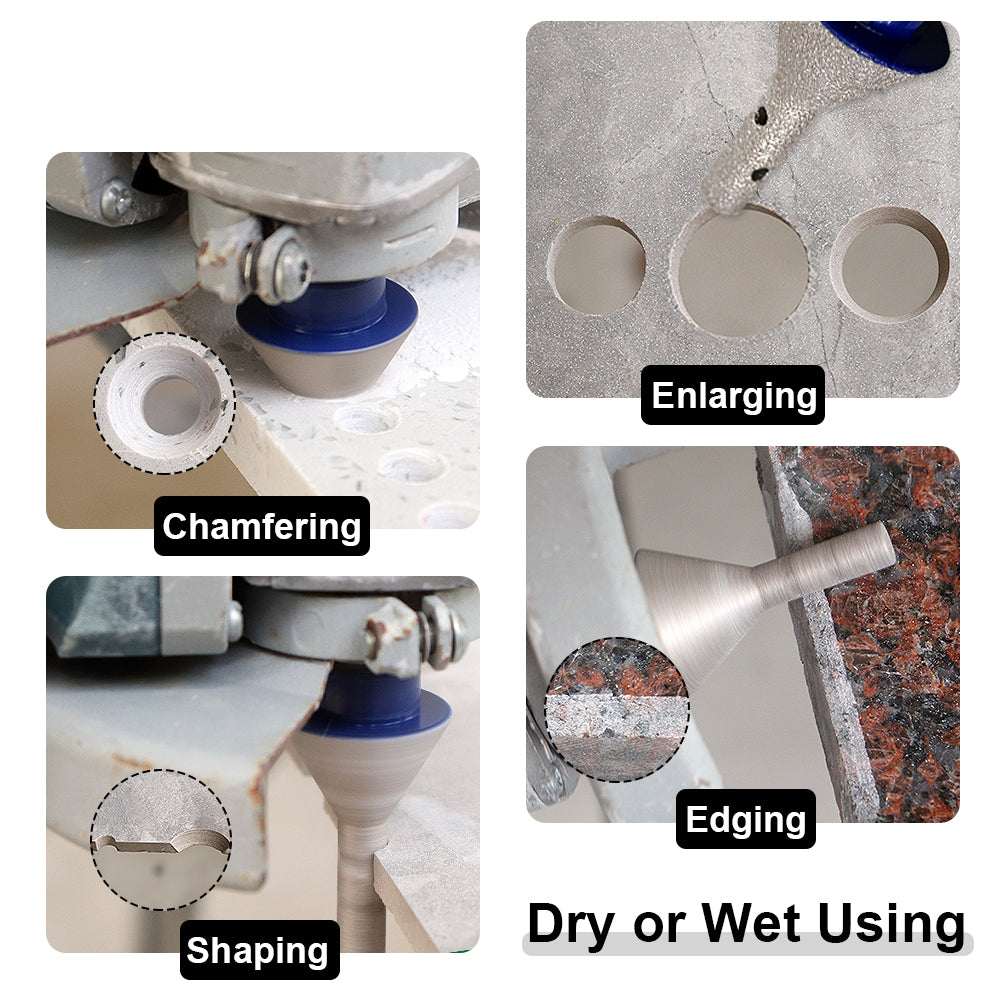

2. Enlarge, chamfer, polish and reshape formed holes, and repair the contour and finish of holes;
3. Suitable for grinding and chamfering, do not drill directly.
4. The recommended speed is 6000rpm, and the maximum speed is 11000rpm;

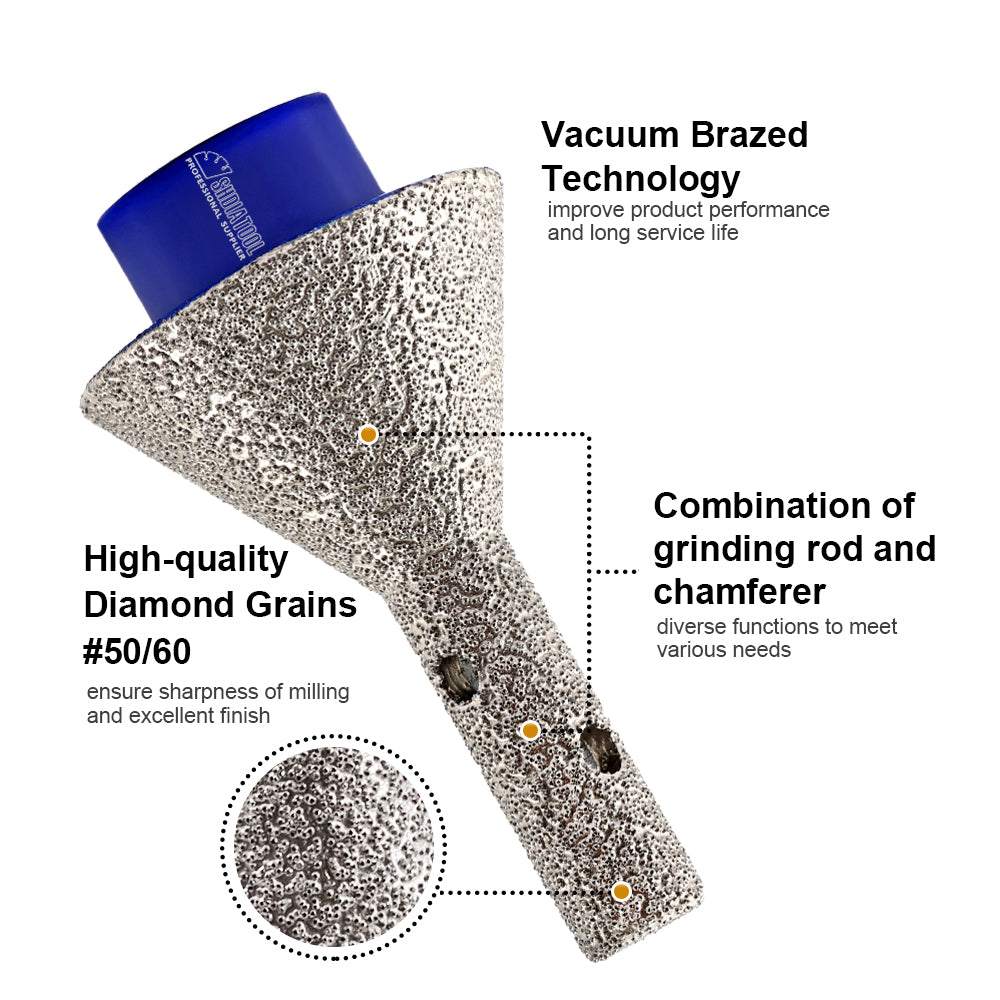

Feature:
1. Vacuum brazed technology improve product performance and long service life;
2. Combination of grinding rod and chamfering to meet various demands;
3. High-quality Diamond Grains #50/60,ensure sharpness of milling and excellent finish.
Note: These products are marked with our brand. If you do not want our brand name, please leave us message, we could send you products without brand.
Customize service: If you order 20pcs we could mark your brand name on our products
MANUELS
SHIPPING Standard Free Shipping:
US&CA 10-15 Days | MX 15-30 Days | AU&NZ 8-15 Days | Europe 5-15 Days
Expedited Shipping:
If you need DHL Express,
Contact us now:
Whatsapp: 189 5255 1577 Email: support@shadiatool.com or online chat.
FAQ Q：What material can this drill bit work on?
A: SHDIATOOL drill bits usually are able to work for various materials, please check our product description and product image to see details.
Q：What difference between red and gold and blue?
A: SHDIATOOL drill bits have different colors drill bits, but they are same quality.
Q: How can I know if this drill bit is suitable with my machine?
A: Please check your machine manual on the thickness and size of/where the arbor is, make sure these details is fine with this drill bit. Don’t worry if you have problem with the thread, SHDIATOOL has adapter solution for you too.
Q: How long can drill bit last?
A: Proper using and maintenance helps your SHDIATOOL drill bits work longer, make sure it under MAX RPM and nice temperature while working.
