SHDIATOOL 11pcs/set Diamond Drilling Bit with Triangular Shank for Granite Marble Porcelain Ceramic Tile Angle Grinder

SKU: A8606510K2T

Size: 6/8/10/20/25/28/32/35/45/50/65mm

Item : SHDIATOOL 11pcs/set Diamond Core Drill Bit Brazed Brill Triangular Shank With Aluminum Suitcase

Color: Blue

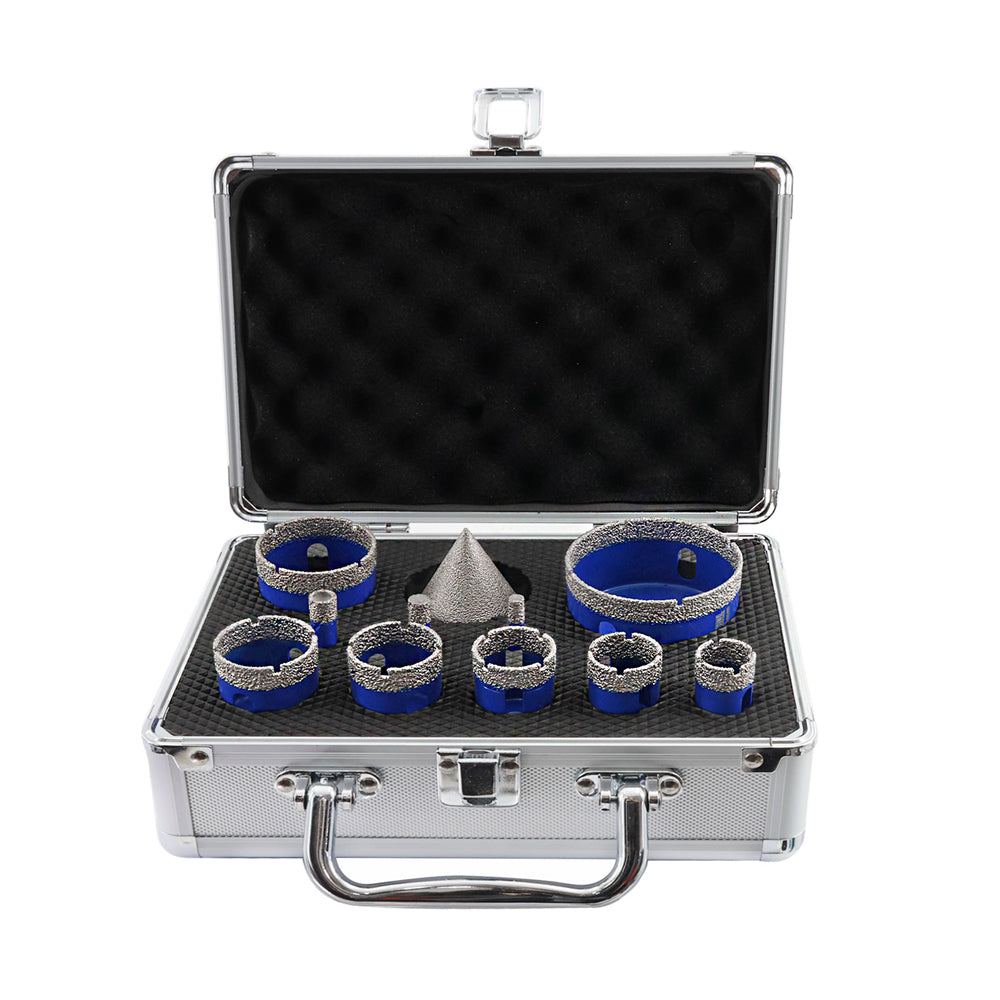

Quantity: 11pcs With Aluminum Case

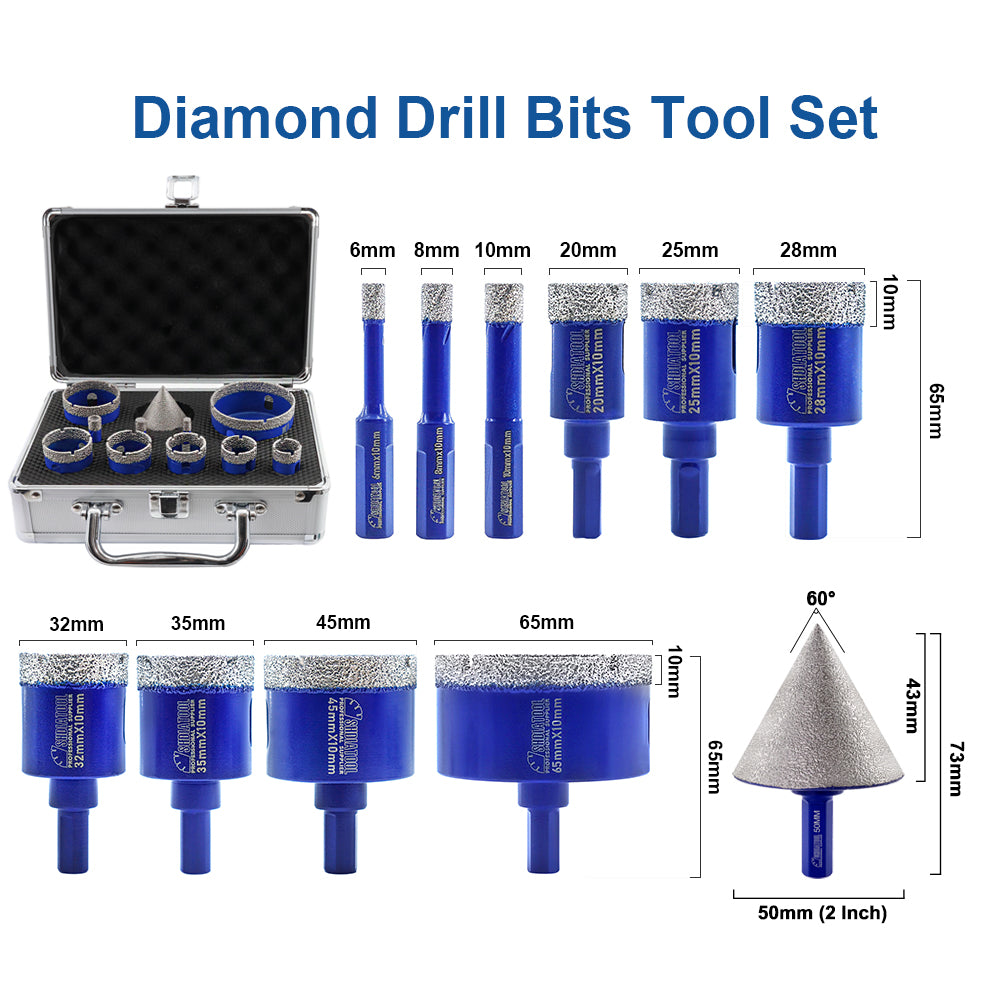

        Drill Bits:

                Diameter: 6MM, 8MM, 10MM, 20MM, 25MM, 28MM, 32MM, 35MM, 45MM, 65MM,

                Diamond Height:10MM; Total Length: 65MM;

        Chamfer Milling Bit:

               Diameter 50mm, Total length 73mm, Working length 43mm;  Grit #80;

  Triangle Shank , handle diameter 10mm (That is very important for your machine)

Application: For drilling granite & marble, masonry, concrete, tile/ceramic, glass, hard plastic.....

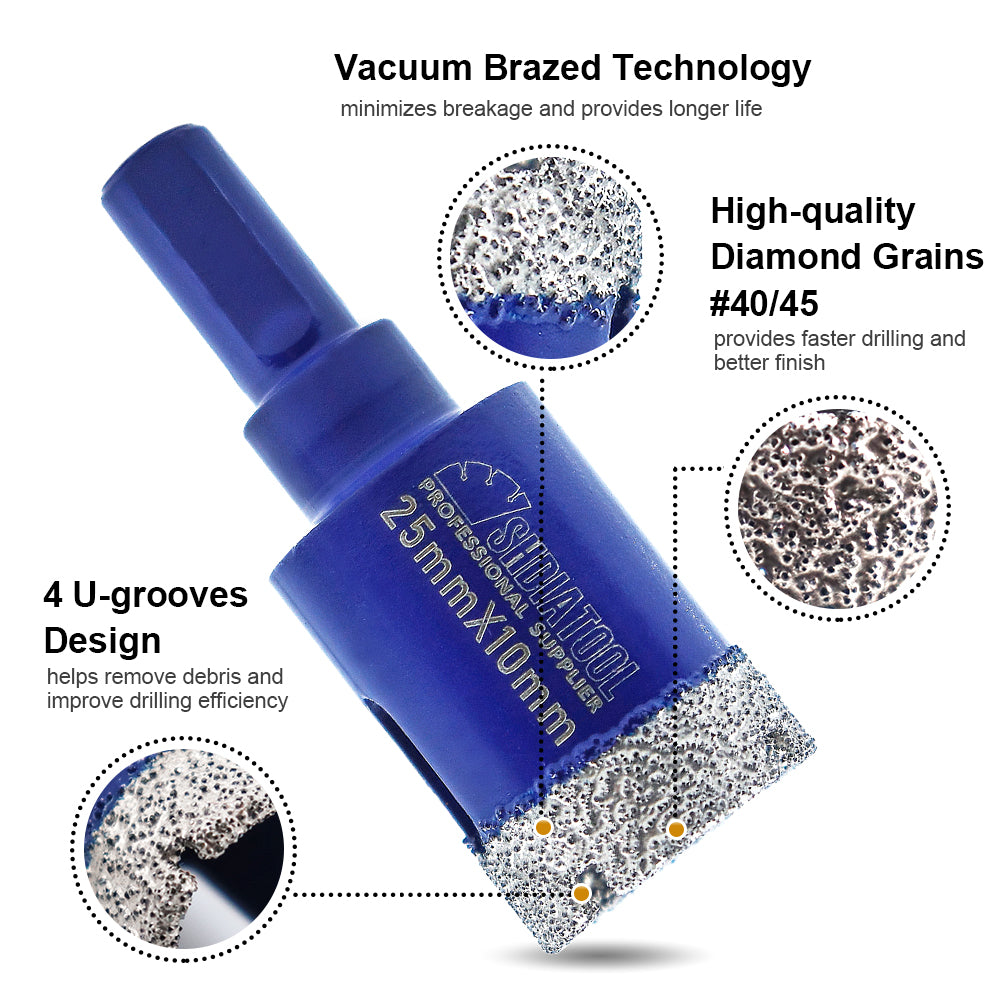

Feature: 1. High-quality diamond grains provides faster drilling and better finish;

               2. Vacuum Brazed Technology minimizes breakage and provides longer life;

               3. U/Grooves design helps remove debris and improve drilling efficiency.

NOTE :   1.Use a suction cup locator to position the drill accurately, or drill at a 45 degree angle until the drill starts to penetrate the material,

                 then lift the drill to a vertical position and continue.

              2.Ensure that all forms of impact or knocking action are switched off when in use;



Standard Free Shipping:

US&CA 10-15 Days | MX 15-30 Days | AU&NZ 8-15 Days | Europe 5-15 Days

Expedited Shipping:

If you need DHL Express,
Contact us now: Whatsapp: 189 5255 1577 Email: or online chat.


Q:What material can this drill bit work on?

A: SHDIATOOL drill bits usually are able to work for various materials, please check our product description and product image to see details.

Q: How can I know if this drill bit is suitable with my machine?

A: Please check your machine manual on the thickness and size of/where the arbor is, make sure these details is fine with this drill bit. Don’t worry if you have problem with the thread, SHDIATOOL has adapter solution for you too.

Q: How long can drill bit last?

A: Proper using and maintenance helps your SHDIATOOL drill bits work longer, make sure it under MAX RPM and nice temperature while working.

Still have questions? Contact us now: 189 5255 1577 or online chat.
