SHDIATOOL Black Dry Diamond Drill Bit 5/8-11 Porcelain Tile Ceramic Marble 7/10pcs

SKU: A85458K1
$135.19 $148.71

Kit: K1
Thread: 5/8-11(North America)

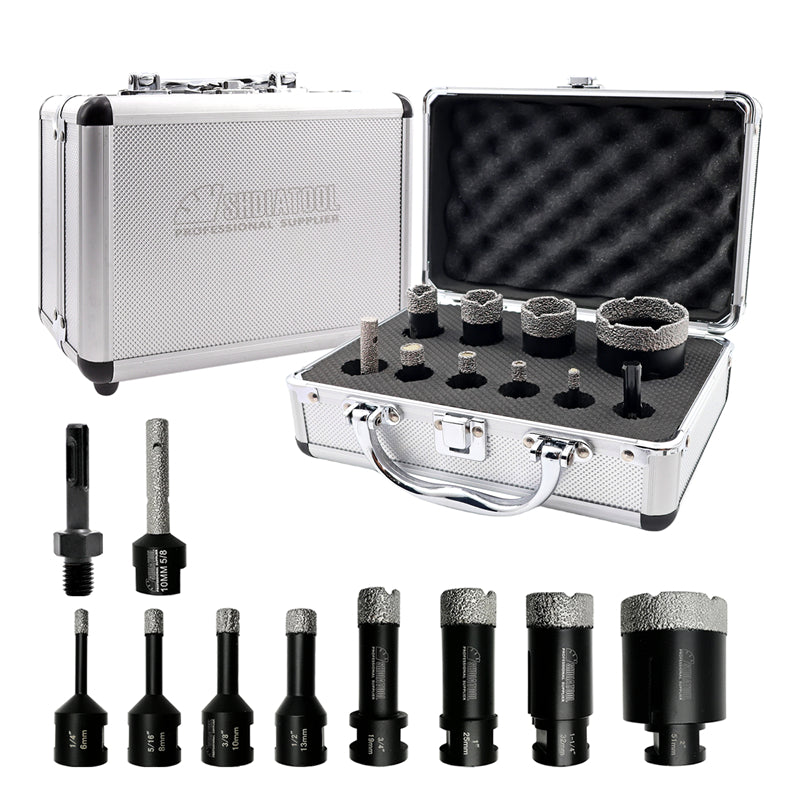

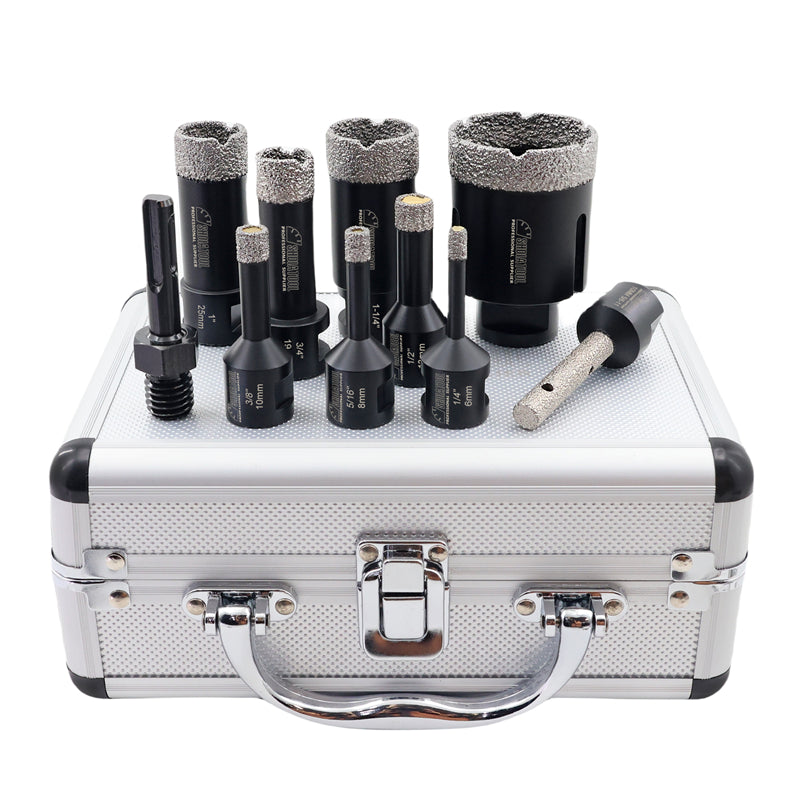

  • 8-Piece Core Drill bits: 6/8/10/13/19/25/32/51mm(1/6",5/16",3/8",1/2",3/4",1",1-1/4",2")

  • 1-Piece 10mm thread Finger Bit

  • 1-Piece 5/8-11male thread To SDS Adapter

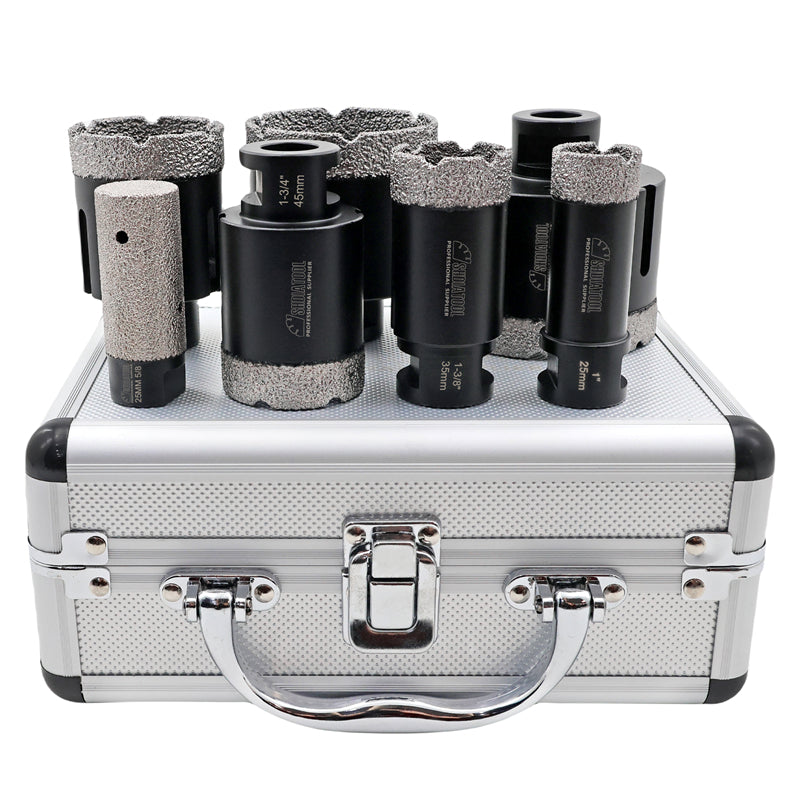

  • 5-Piece Core Drill bits: 19/25/35/45/51mm(3/4",1",1-3/8",1-3/4",2")

  • 1-Piece 5/8-11 thread 20mm Finger Bit

  • 1-Piece 5/8-11male thread To SDS Adapter

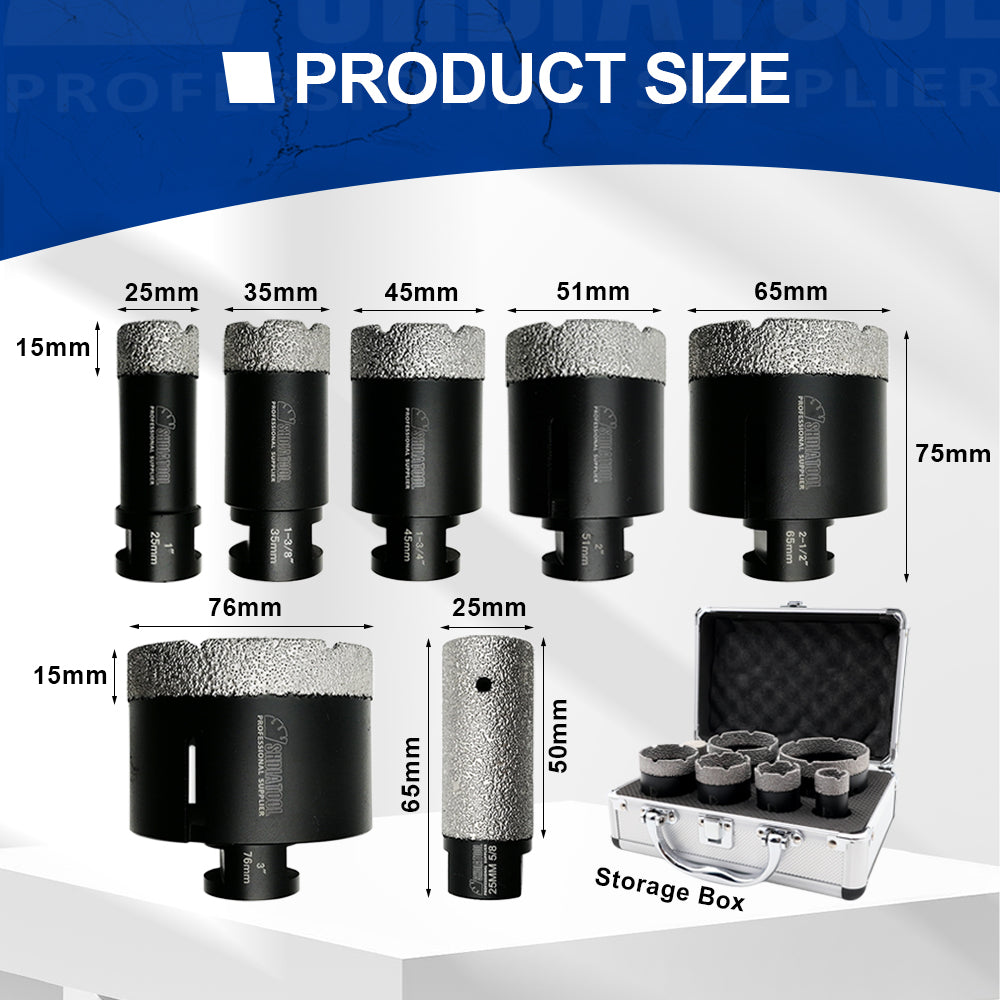

  • 6-Piece Core Drill bits: 25/35/45/51/65/76mm(1",1-3/8",1-3/4",2",2-1/2",3")

  • 1-Piece 5/8-11 male thread 25mm Finger Bit

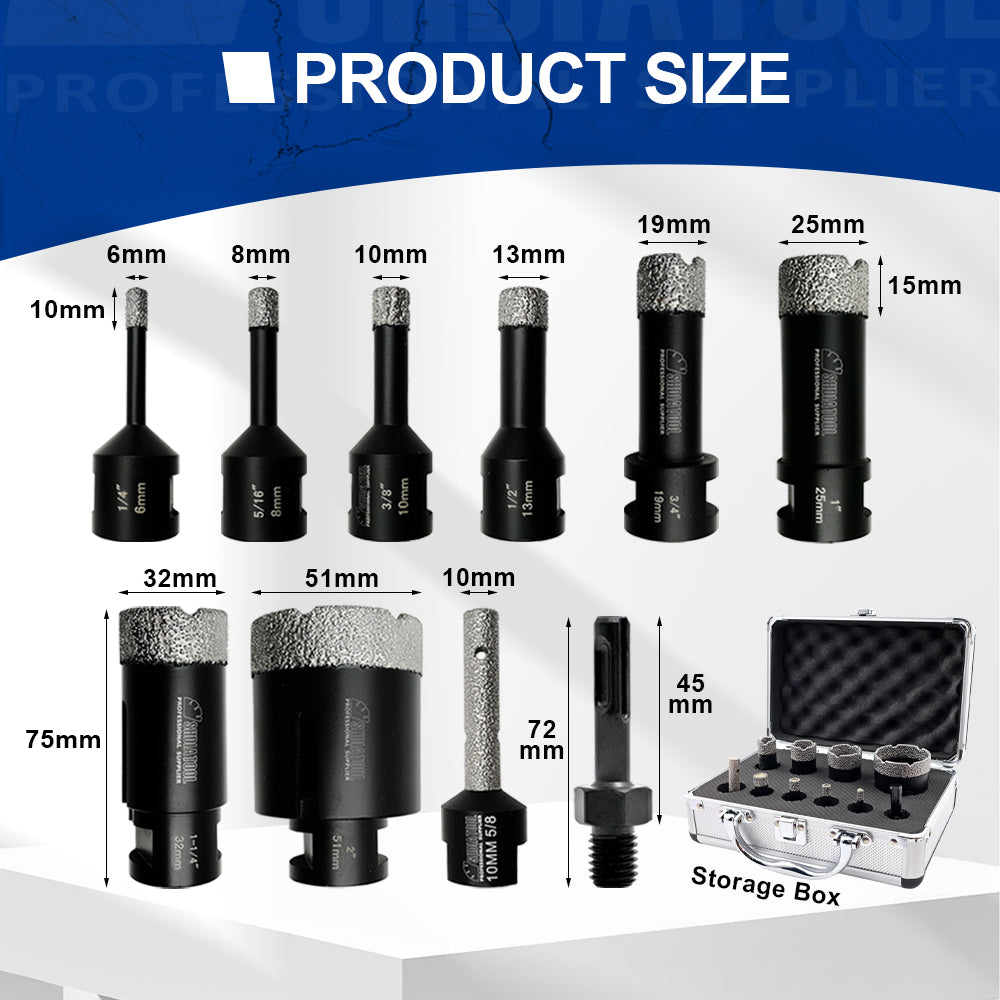

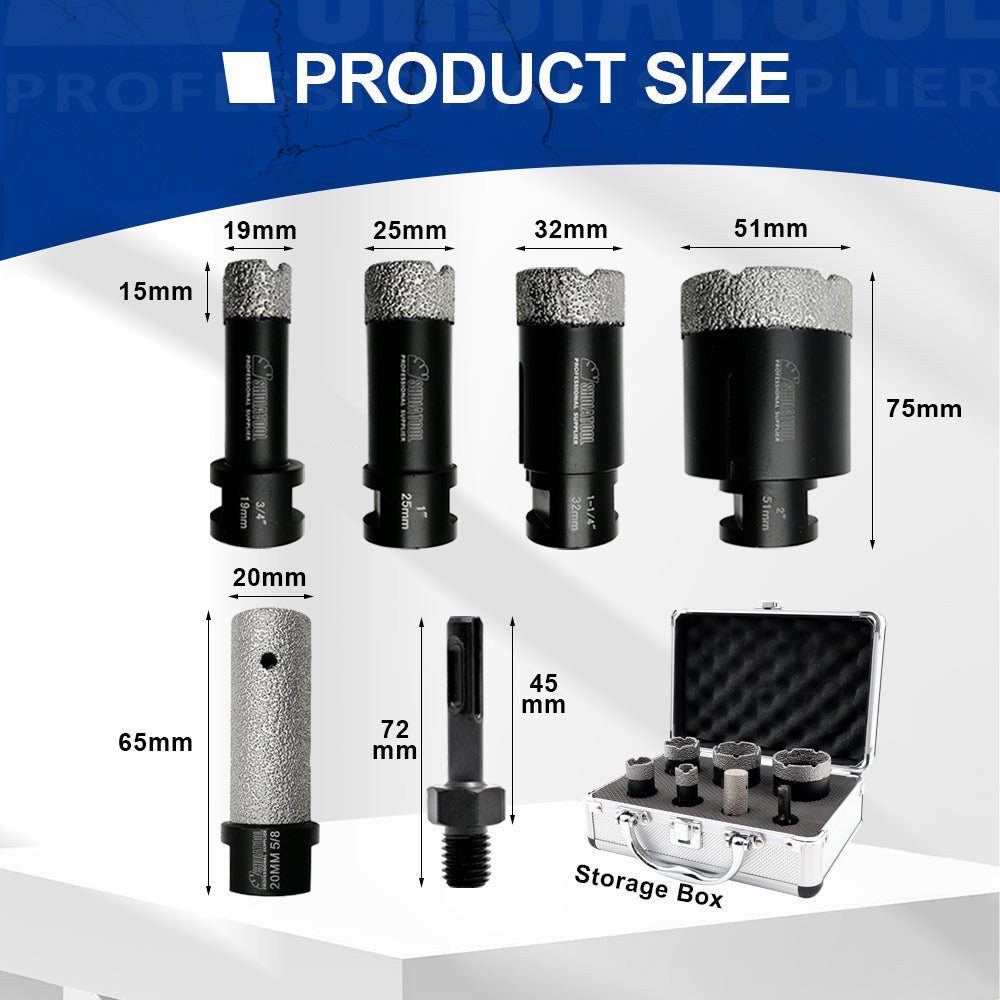

1.Core Drill Bits:
Diameter 6/8/10/13mm:35mm Max working depth, 10mm Diamond height, Total Length 62mm,with Wax inside helps cooling the bits
Diameter 19/25/32/51mm:50mm Max working depth, 15mm Diamond height, Total Length 75mm
Core bits Arbor: 5/8-Inch-11

2. Diamond Finger Bits:
10MM Diameter, 50MM workable length, 5/8-11 thread, Total Length: 75mm, Grit #50/60
3.SDS Adapter:
This Adapter could change the connection of diamond bits from 5/8-Inch-11 to SDS

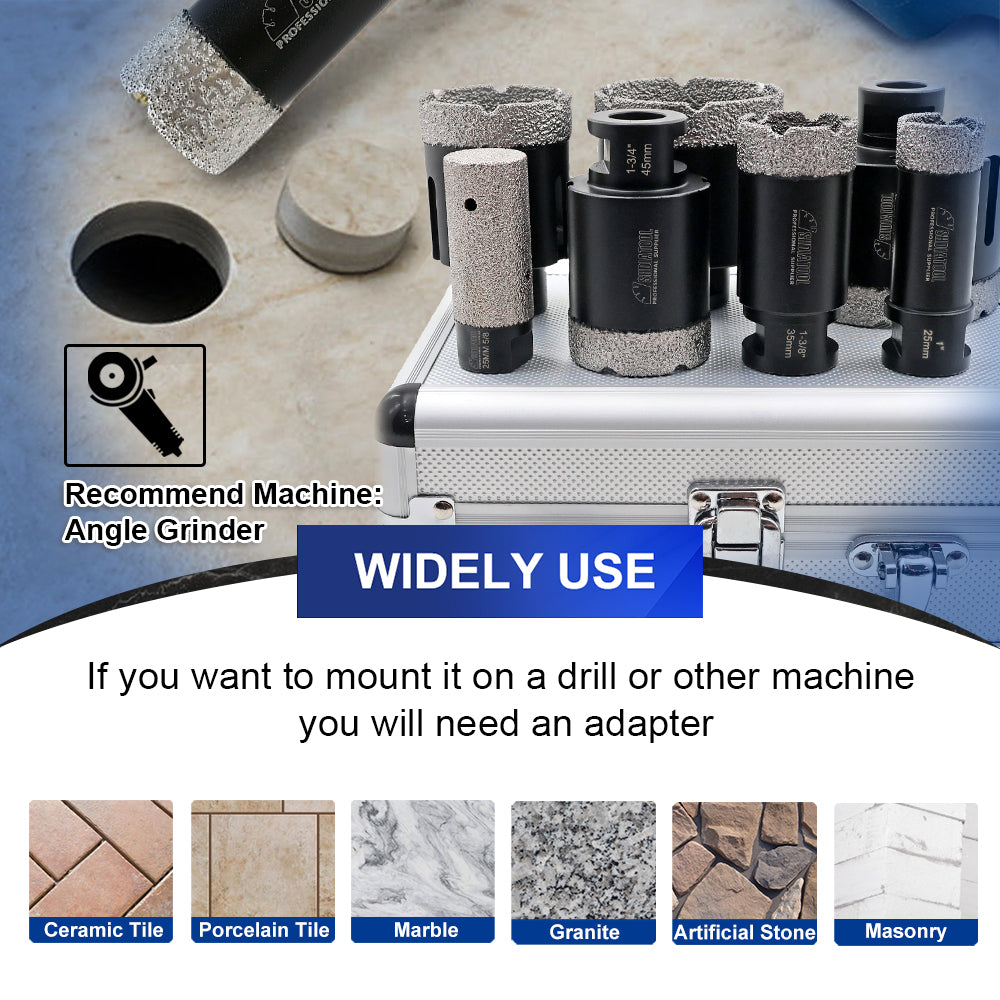

Application :

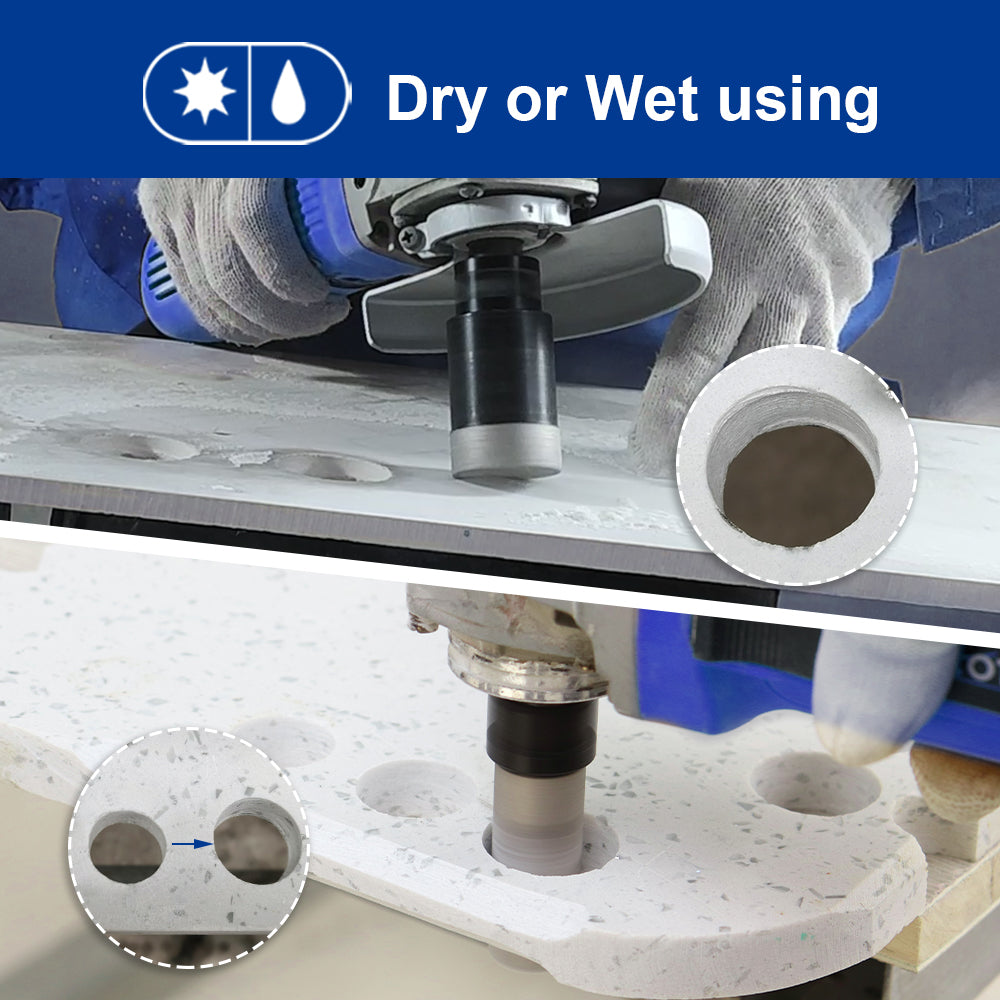

Dry/wet drilling for porcelain tile, granite, marble, stone, Masonry, brick...

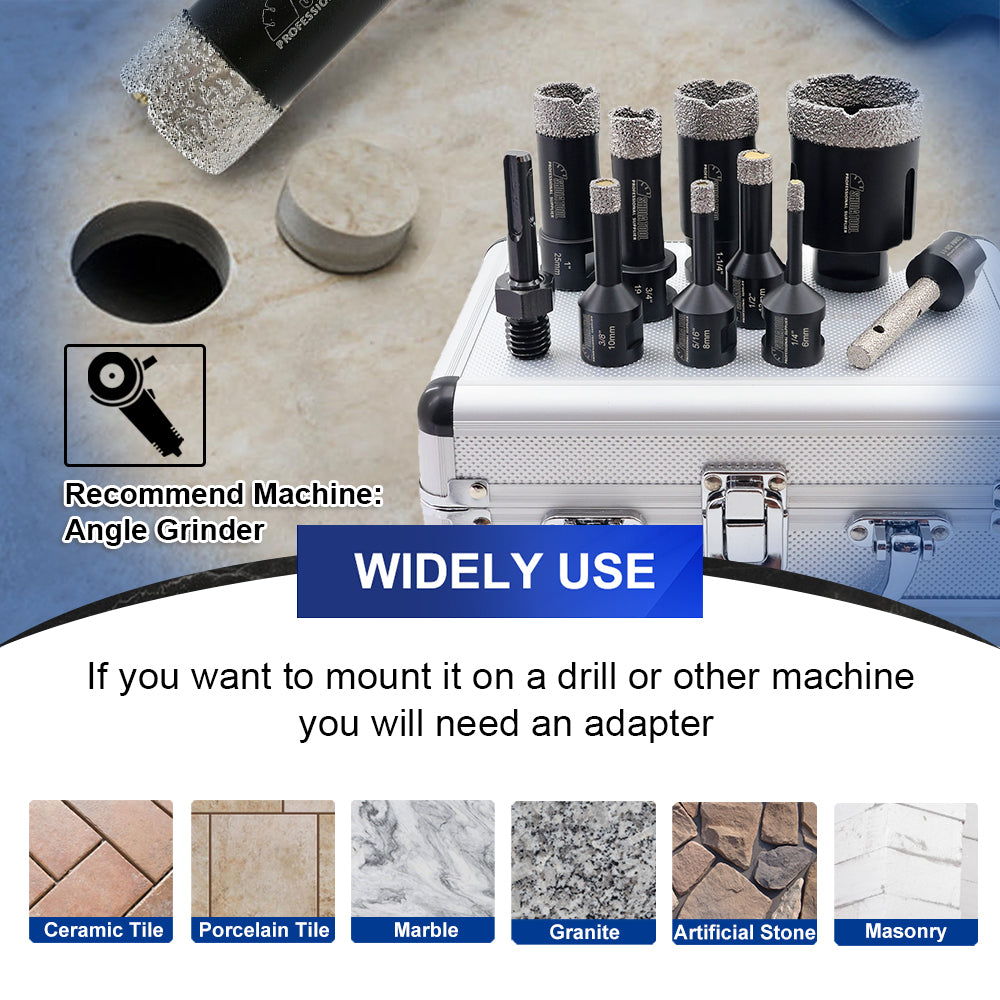

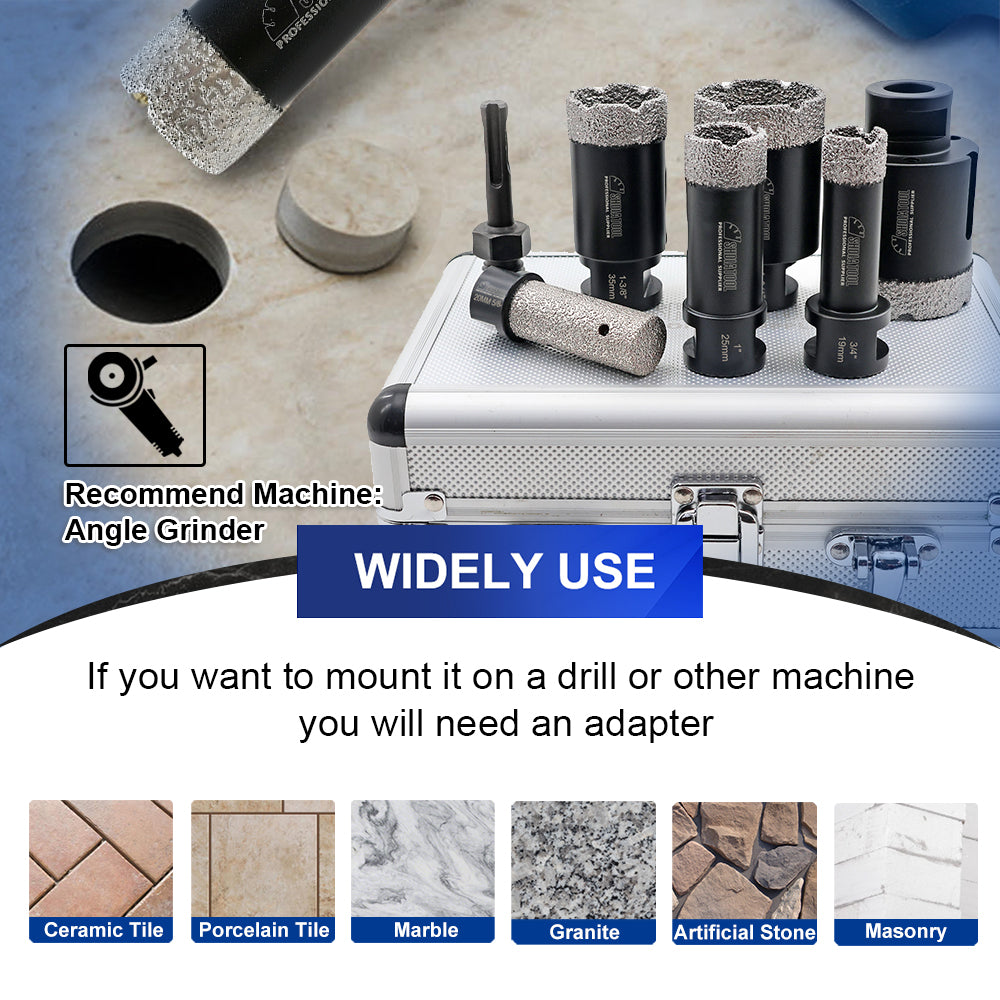

Recommended Machine: Angle Grinder

1. Minimizing any breakage and safe for operator
2. High quality Diamond Grain provide fast and smooth drilling
3. Vacuum Brazed technology provide much longer working life than electroplated technology

================THE END================

Operation Tips for Vacuum Brazed Diamond Drill core bits
 1.Do not use these drill bits with hammer mode
 2.Only fit these drill bits on a cord drill, not cordless drill(no enough power)
 3.Only for tile drilling not recommend for the material behind the tile
 4.For horizontal drilling,just give a gentle pressure
 For vertical drilling, the weight of the machine will give sufficient pressure
 5.Start drilling as per following instructions:
 1) Place the drill at a 45 degree angle
 2) Drilling till the hole start to form
 3) Bring the drill up into upright position
 4) Continue to drill and swaying the machine along a circle


Standard Free Shipping:

US&CA 10-15 Days | MX 15-30 Days | AU&NZ 8-15 Days | Europe 5-15 Days

Expedited Shipping:

If you need DHL Express,
Contact us now: Whatsapp: 189 5255 1577 Email: or online chat.


Q:What material can this drill bit work on?

A: SHDIATOOL drill bits usually are able to work for various materials, please check our product description and product image to see details.

Q:What difference between red and gold and blue?

A: SHDIATOOL drill bits have different colors drill bits, but they are same quality.

Q: How can I know if this drill bit is suitable with my machine?

A: Please check your machine manual on the thickness and size of/where the arbor is, make sure these details is fine with this drill bit. Don’t worry if you have problem with the thread, SHDIATOOL has adapter solution for you too.

Q: How long can drill bit last?

A: Proper using and maintenance helps your SHDIATOOL drill bits work longer, make sure it under MAX RPM and nice temperature while working.

Still have questions? Contact us now: 189 5255 1577 or online chat.
