Cutting dense porcelain tile isn't about raw power—it's about controlling heat and lateral stress. The ultimate goal is achieving a fast feed rate without blowing out the delicate surface glaze.

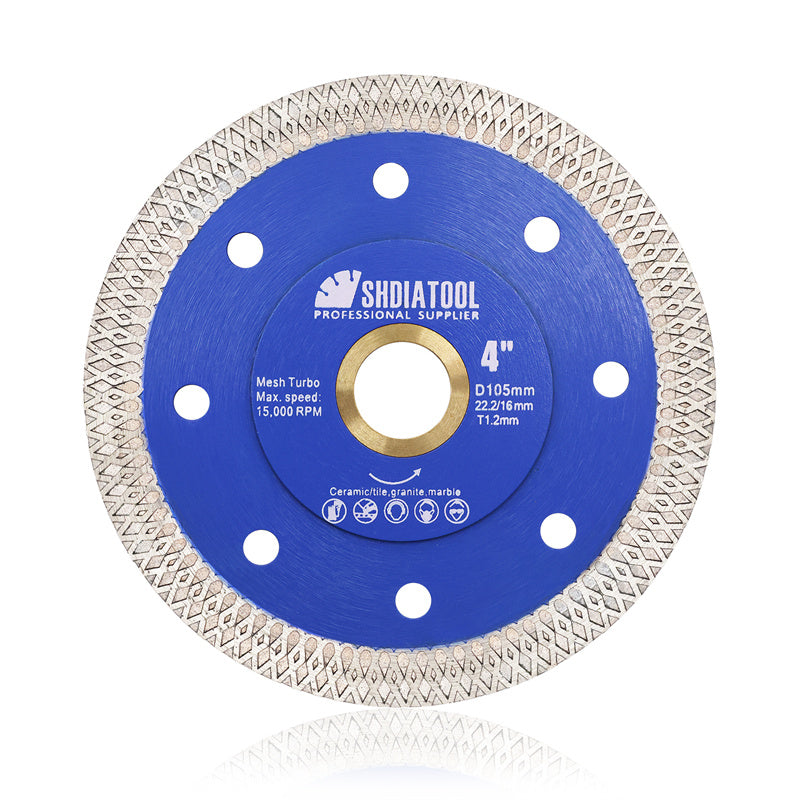

While continuous-rim blades offer clean edges at slow speeds, and standard turbo blades cut fast at the expense of chip-free edges, the X Mesh Turbo Diamond Blade bridges the gap. Designed specifically for porcelain, ceramic, and marble, this blade profile balances speed, chip control, and thermal management.

The Engineering Behind the X Mesh Profile

On dense materials, friction generates intense heat. If cutting slurry or dry dust packs into the kerf, the blade slows, thermal expansion occurs, and the matrix begins to micro-fracture the tile edge.

SHDIATOOL’s X Mesh Turbo Blade solves this through three core design elements:

Multidirectional Debris Channels: The recessed mesh pattern on the rim acts as a pump. In dry cutting, it draws airflow across the cut; in wet cutting, it forces water directly to the diamond contact point to flush out slurry.
Hot-Pressed Sintered Matrix: High-grade diamond grit is bonded using a hot-pressed sintering process. This ensures uniform diamond exposure, high segment density, and resistance to thermal fatigue.
10 mm Segment Height: Provides extended operational life compared to standard 7 mm or 8 mm entry-level blades.

Why Thin Kerf Matters for Edge Control

For handheld angle grinders—typically using 4" (105 mm), 4.5" (115 mm), and 5" (125 mm) sizes—SHDIATOOL utilizes an ultra-thin 1.2 mm core and segment thickness.

Lower Resistance: A narrow kerf removes less material per second, reducing motor drag and operator effort.
Reduced Surface Glaze Damage: Removing less material minimizes lateral deflection and vibration, preventing hard porcelain glazes from micro-chipping along the finished cut line.

Performance Comparison: X Mesh Turbo vs. Continuous Rim

Performance Metric	Standard Continuous Rim	X Mesh Turbo Blade
Primary Strength	Smooth edge finishing	High speed with low chip risk
Primary Drawback	Heat retention; slow feed rates	Extreme polish edges slightly lower than continuous
Heat & Dust Evacuation	Relies entirely on external water	Self-purging airflow/water design
Best Jobsite Application	High-visibility finished miters & bullnose	Ripping floor tiles, field cuts, fast backings

Field Operating Guidelines: Dry vs. Wet Cutting

While rated for both dry and wet applications, maximizing blade life depends on proper field execution:

Wet Cutting (Recommended)

Best For: Stationary tile saws and long straight runs.
Impact: Water cools the steel core to prevent warping, flushes abrasive slurry instantly, and maximizes the operational lifespan of the diamond matrix.

Dry Cutting

Best For: Quick field notches, back-splashes, and jobsite repairs where running water is impractical.
Impact: Requires strict dust extraction/respiratory protection. Never force the tool. Allow the weight of the grinder to drive the cut; excessive pressure causes heat glaze on the diamonds, arbor wobble, and immediate tile blowout.

Sizing and Machinery Setup

SHDIATOOL manufactures the X Mesh Turbo line across a full diameter spectrum from 4" (105 mm) up to 14" (350 mm):

4" – 5" (105 mm – 125 mm): Tailored for standard 7/8" arbor handheld angle grinders used in freehand field trimming.
7" – 10" (180 mm – 250 mm): Built for overhead rail saws and wet tile saws.
12" – 14" (300 mm – 350 mm): Designed for high-horsepower bridge saws and heavy masonry cutters.

Installation Note: Always verify arbor diameter and use the correct reducing washer if required. Ensure the spindle flange is clean and free of grit before tightening to eliminate axial runout.
